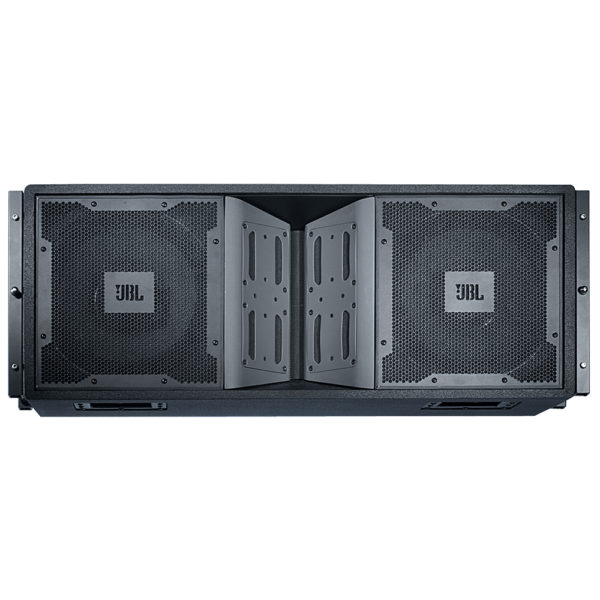

  • JBL VT 4888

    Description

    Midsize Tri-Amplified 3-Way High Directivity Line Array Element: The VT4888 is designed to deliver high-quality reinforcement of music and speech in a variety of applications including concert audio and corporate A/V presentations of all types.

    • Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled cone transducers for low weight and high output.
    • Direct Cooled™ cone transducers for low weight and high output.
    • HF Waveguide units couple to create precision vertical slot aperture.
    • Radiation Boundary Integrator® (RBI): Patented technology integrates output of individual bandpass elements.
    • Advanced construction techniques using PlyMax® provide exceptionally rigid, lightweight enclosure construction.
    • Rugged DuraFlex™ exterior finish; weatherized components.
    • Patented, integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable hanging arrays.
    • Pre-engineered to accept optional JBL DrivePack® amplified electronics package. Rear-panel mechanical attachments and electrical connections ensure upgrade path to self-powered system.
    • For use in stand-alone arrays or in combination with other VERTEC® system models.

    Additional information

    113lbs
    39 in x 14 in x 20 in

    Frequency Range 48 Hz – 18 kHz (-10dB)
    Frequency Response 60 Hz – 16 kHz (± 3 dB)
    Continuous Power Rating 2000W LF, 600W MF, 150W HF
    Sensitivity 98 dB LF, 102 dB MF, 114 dB HF (1W/1m)
    Nominal Impedances 2 x 8 ohm LF, 8 ohm MF, 16 ohm HF
    Horizontal Coverage 90 degrees nominal,
    250 Hz – 16 kHz (-6dB)
